100T Cement Storage Silo

Moisture Proof Cement Storage Silo / Tank For Dry Mix Mortar Manufacturing Plant

Brief Introduction of Cement Silo:

1. Cement silo is suitable for storage tanks of bulk cement in engineering construction, commercial concrete mixing plant, road and bridge water conservancy project, urban construction and other projects. It has the characteristics of waterproofing, moisture proof, preventing cement loss, reducing urban air dust pollution, small floor space, long service life and low cost. It is a building environmental protection machinery accessory product currently promoted and used.
2. The cement silo is usually used as an accessory product for the concrete mixing plant (floor).
3. The cement silo is suitable for the installation of bulk cement and dry fly ash. It has the characteristics of rainproof, moisture proof and convenient use. It generally has 50t, 100t, 200t, 300t, 400t, 500t and other specifications. It can also be made according to the size requested by the user.
4. The cement silo is generally a cylindrical bracket structure. The upper part has dust removal equipment to prevent dust leakage, and the lower part is equipped with a broken arch device to prevent dust agglomeration and make the powder unloading smoothly.
5. The cement silo generally uses a bulk cement conveyor to blow the powder into the tank.

Parameters of Cement Storage Tank:

Working Principles of Storage Silo / Tank:

1. When the cement silo (cement tank) is working, it must be erected by a special crane, then placed on the pre-prepared concrete foundation, and the verticality of the cement silo (cement tank) after standing up with the horizontal plane is checked. Then, the bottom is welded to the base embedded part firmly.

2. After the storage bin is fixed, the cement is transported by the bulk cement truck to the construction site, and then the conveying pipeline of the bulk cement truck is connected with the feeding pipeline of the cement silo (cement tank), and the gas pressure of the bulk cement truck will be The cement in the tank is transported into the cement silo (cement tank).

3. In the process of transporting cement into the storage bin, the operator should uninterruptedly press the button of the vibration motor of the dust collector to shake off the cement attached to the bag of the dust collector to prevent the bag from being blocked and the warehouse to be exploded.

4. Once the bag is blocked, the pressure in the chamber exceeds the safety pressure of the top pressure safety valve, and the pressure safety valve can open the pressure in the release chamber to prevent the explosion accident.

5. through the high and low material level can be observed the warehouse full and lack of material.

6. When the material needs to be discharged, open the manual discharge valve at the bottom of the cone and then transport the cement through the cement conveyor. In the process of discharging, if the phenomenon of “arching” occurs, press the button of the electromagnetic valve of the arching device in time to blow the air, eliminate the “arching” and feed, and ensure the smooth supply of cement.

7. When the cement conveying device fails, close the manual discharge valve at the bottom of the cone to prevent the cement from overflowing and causing waste.

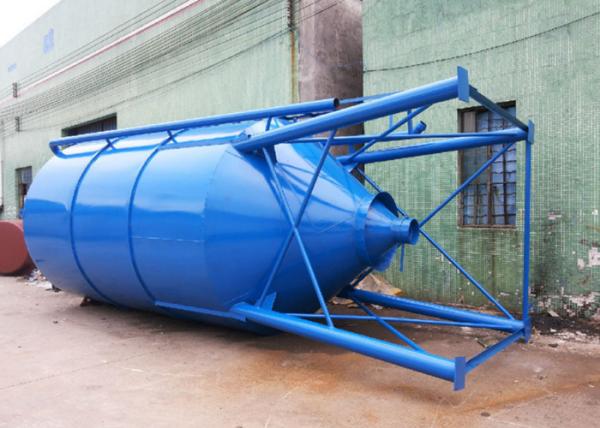

100T Cement Storage Silo

100T silo storage tank

100 Ton Cement Storage Silo

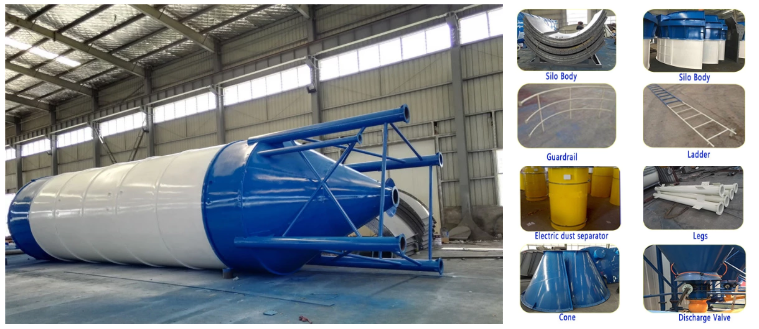

100T Cement Storage Silo Images
